Hattori VD57 HCP Quartz Chronograph Movement, Date at 3
Product details
Description

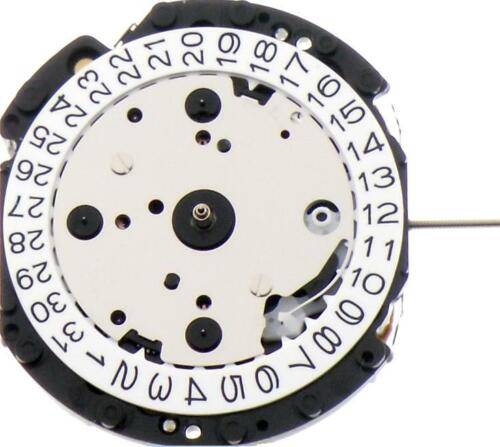

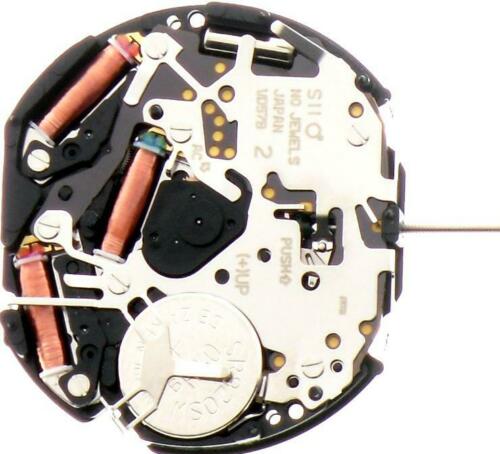

Hattori VD57 HCP quartz watch movement has small seconds, chronograph, 24-hour and date at 3:00. Size: 12 3/4 ligne, diameter 29.50 mm, thickness 4.57 mm, overall height 7.10 mm. Hand sizes are 110 / 65 / 20 (H / M / S). 0 jewels, uses a 371 (SR920SW) battery. Stem is part number 351177, tap 10.
HCP: high cannon pinion. Includes stem.
Battery, hand and stem specs included so you can order every matching part at once.
Specifications
| Manufacturer | Hattori |
|---|---|
| Caliber | VD57 |
| Movement type | Quartz |
| Size | 12 3/4 ligne (29.50 mm) |
| Thickness | 4.57 mm |
| Overall height | 7.1 mm |
| Functions | Small seconds; Chronograph; Date; 24-hour |
| Battery | 371 |
| Date position | Date at 3:00 |
| Jewels | 0 |
| Hand sizes (H / M / S) | 110 / 65 / 20 |
| Stem | 351177, tap 10 |
Battery for this movement: 371
Add the matching battery to the same order.
-
371 RENATA $0.83
-
371 SEIKO SEIZAIKEN $1.05
-
371/370 Energizer $0.90
Stem for this movement
- Stem number
- 351177
- Crown tap
- 10
Crowns fit the case, so match the crown to the case tube and the tap size. Shop crowns · Crown and stem guide
