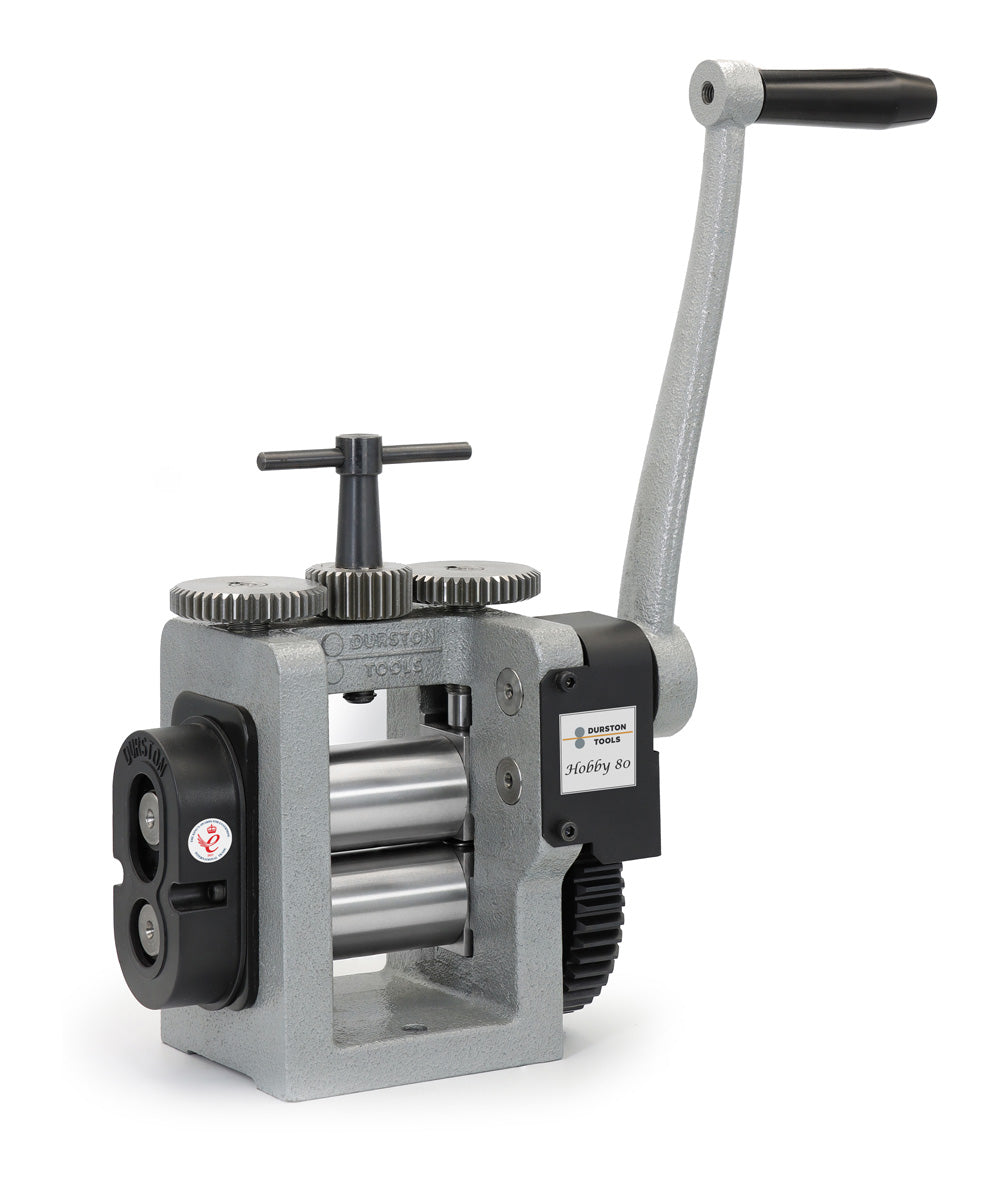

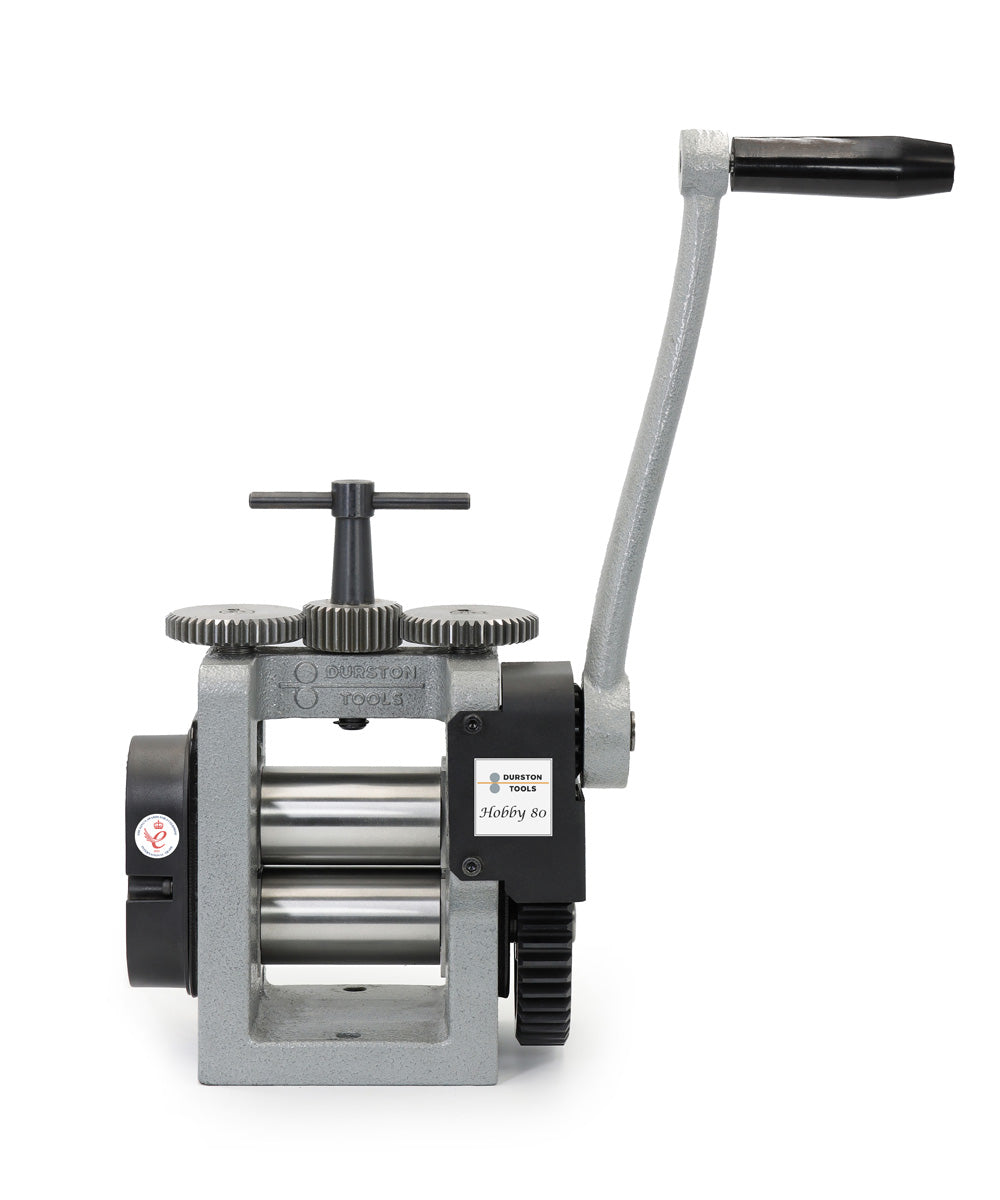

Durston Hobby 80 Rolling Mill

The Durston Hobby 80 Rolling Mill is a compact, entry-level rolling mill designed for jewelers, hobbyists, and small studio workshops. Built with Durston’s renowned engineering quality, this mill offers reliable performance in a small footprint while maintaining the durability and precision expected from professional jewelry tools.

Manufactured from one-piece cast iron construction, the Hobby 80 provides excellent strength and rigidity, ensuring smooth and stable rolling. The precision-hardened and ground rollers (64 HRC) deliver consistent results when flattening wire or reducing sheet thickness.

The mill features a 3:1 reduction gearbox, making it easier to roll metal with less effort while maintaining good control over thickness adjustments. Standard models include flat rollers, while an optional top roller can be added to create additional wire shapes such as triangular or D-shaped profiles.

Designed to be compact yet powerful, the Hobby 80 is ideal for bench-top use and provides an affordable entry point into professional jewelry metal forming.

Key Features

• 80 mm flat rolling rollers for sheet and wire

• 3:1 gear reduction for smoother operation

• One-piece cast iron frame for stability and durability

• Precision-hardened rollers (64 HRC) for long service life

• Optional combination top roller for additional wire shapes

• Compact design suitable for smaller jewelry workshops

Applications

• Rolling sheet metal thinner

• Flattening wire

• Preparing metal for rings, bangles, and jewelry components

• Texture rolling using pattern plates

• Small jewelry fabrication projects

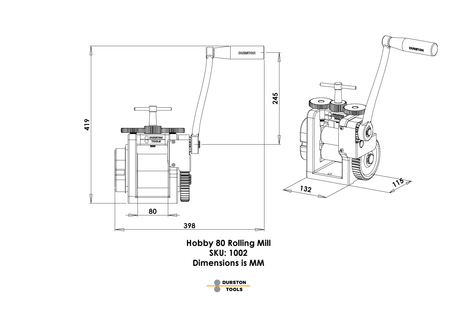

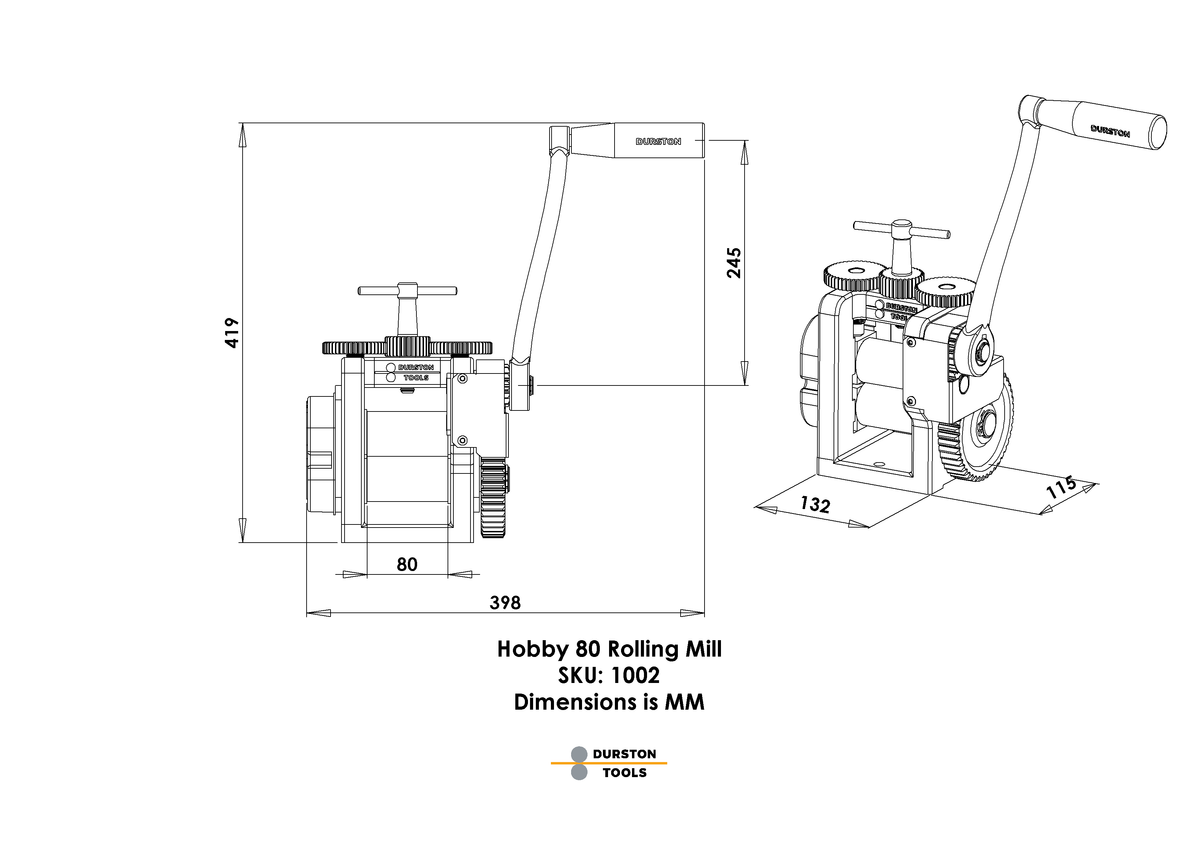

Product Specifications

• Brand: Durston Tools

• Model: Hobby 80

• Roller Width: 80 mm (3.15")

• Gear Ratio: 3:1 reduction

• Maximum Sheet Thickness: ≈4 mm

• Roll Hardness: 64 HRC hardened steel

• Construction: One-piece cast iron body

• Weight: approx. 19 kg (≈42 lbs)
