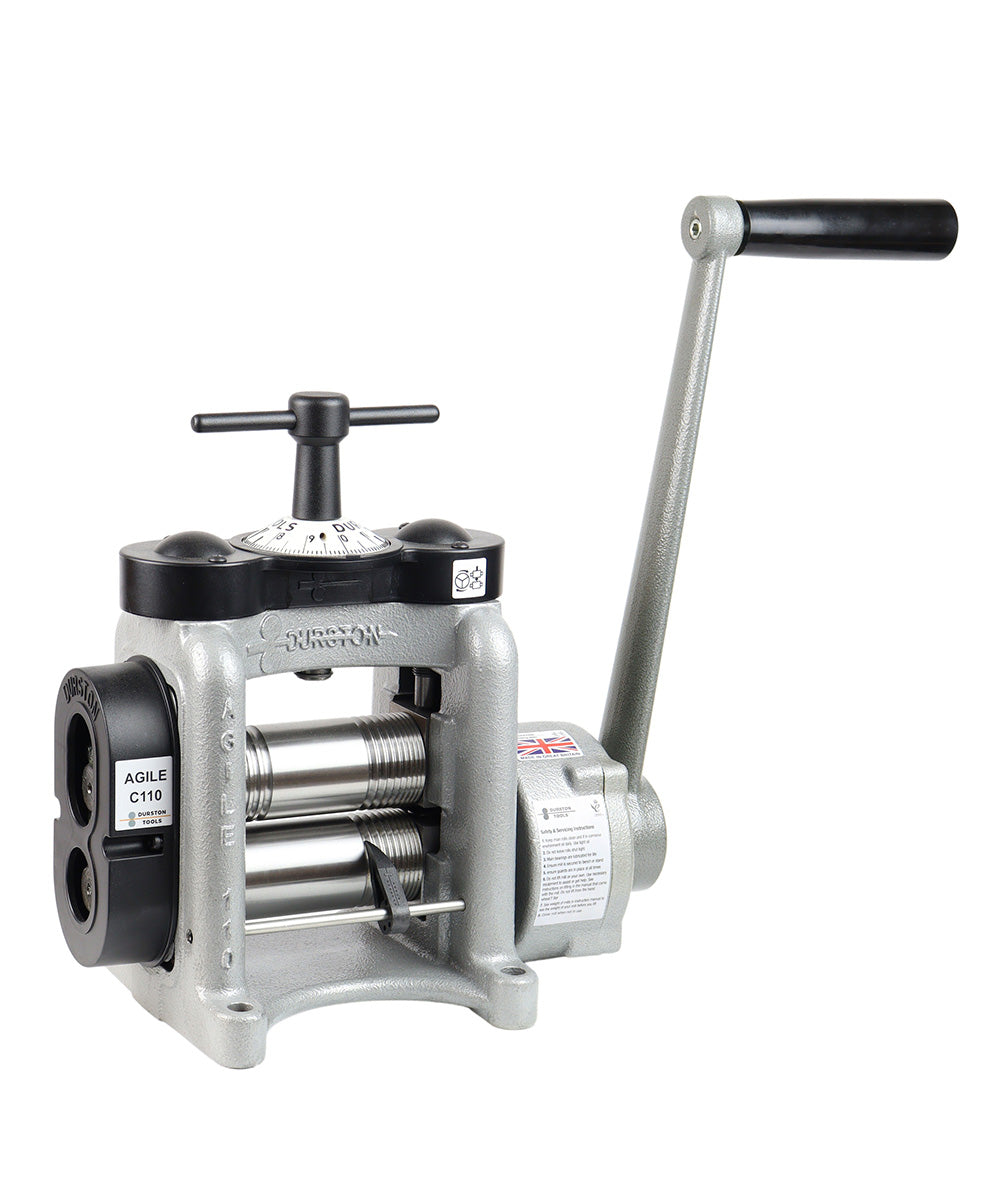

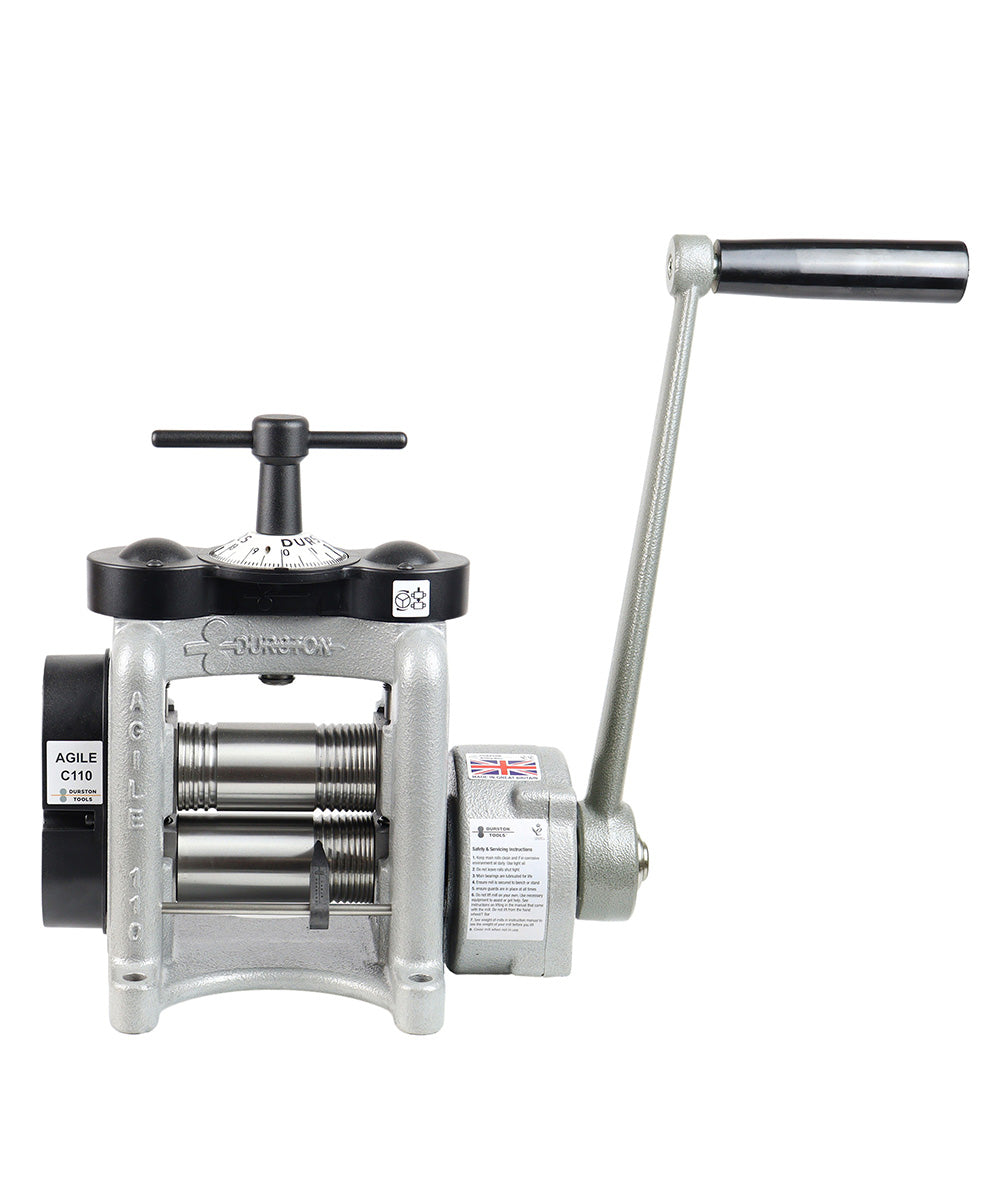

The Durston Agile C110 is a professional combination rolling mill designed for jewelers and metalsmiths who need a versatile and reliable tool for rolling sheet metal and wire. Part of Durston’s Agile series, this mill offers excellent performance while maintaining a lighter frame and more compact footprint compared to traditional heavy-duty rolling mills.

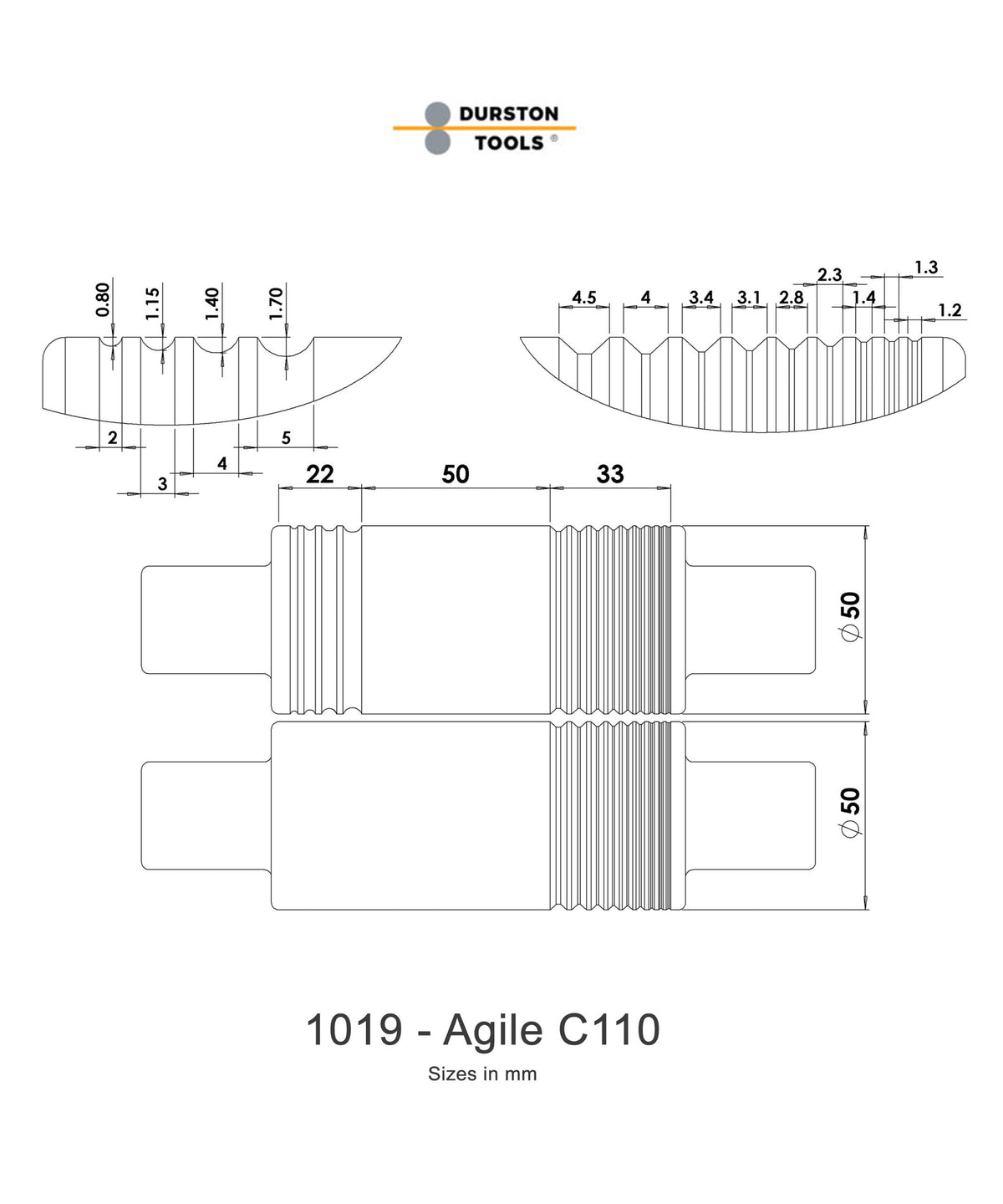

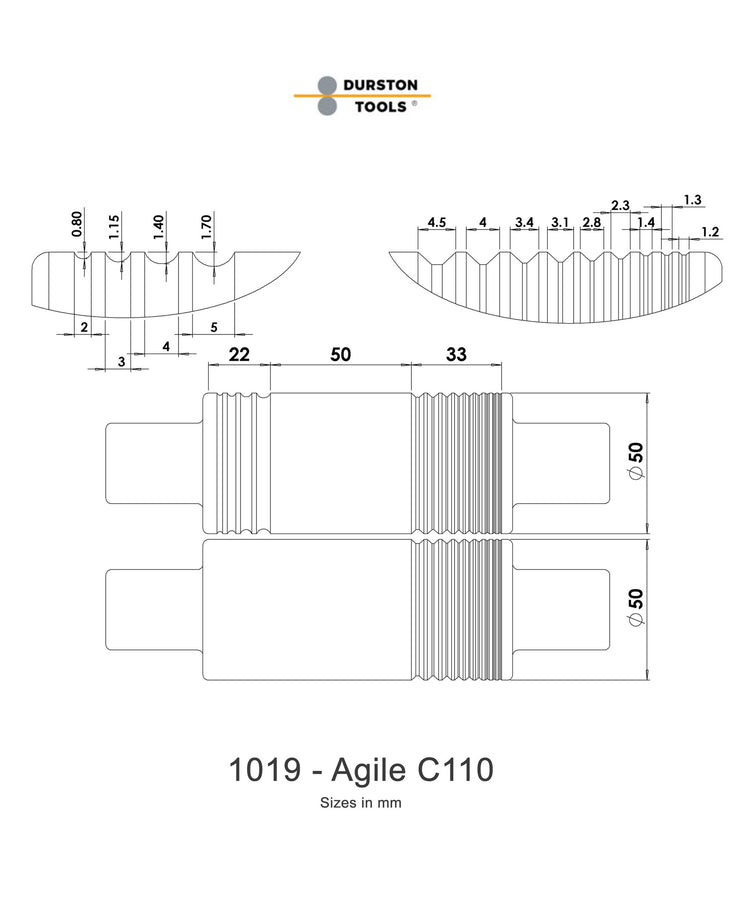

The mill features 110 mm wide rollers, including a 50 mm flat rolling area, 9 square wire grooves, and 4 half-round grooves, allowing users to roll sheet, square wire, and half-round wire with a single machine.
A 4:1 reduction gearbox reduces the effort required to roll metal, providing smoother operation and better control when reducing thickness or shaping wire.
Built with Durston’s high manufacturing standards, the rolls are induction-hardened to approximately 64 HRC, ensuring durability and long-term performance in professional workshops.
Key Features
-
Combination rolling mill for sheet and wire
-
110 mm roller width with 50 mm flat rolling area
-
9 square wire grooves and 4 half-round grooves
-
4:1 gear reduction for smoother rolling
-
Induction-hardened steel rolls (≈64 HRC)
-
Compact and lighter design compared to traditional DRM mills
Applications
-
Rolling sheet metal thinner
-
Forming square and half-round wire
-
Jewelry fabrication and metalworking
-
Texture rolling and pattern work
-
Preparing metal for rings, bangles, and wire components
Product Specifications
-
Brand: Durston Tools
-
Model: Agile C110
-
Roller Width: 110 mm
-
Roller Diameter: 50 mm
-
Flat Rolling Area: 50 mm
-
Square Wire Grooves: 9 (1–7 mm range)
-
Half-Round Grooves: 4 (2, 3, 4, 5 mm)
-
Maximum Sheet Thickness: 5.5 mm
-
Maximum Wire Capacity: 7 mm
-
Gear Ratio: 4:1 reduction gearbox
-
Weight: ~26 kg (≈57 lbs)
