Best Built

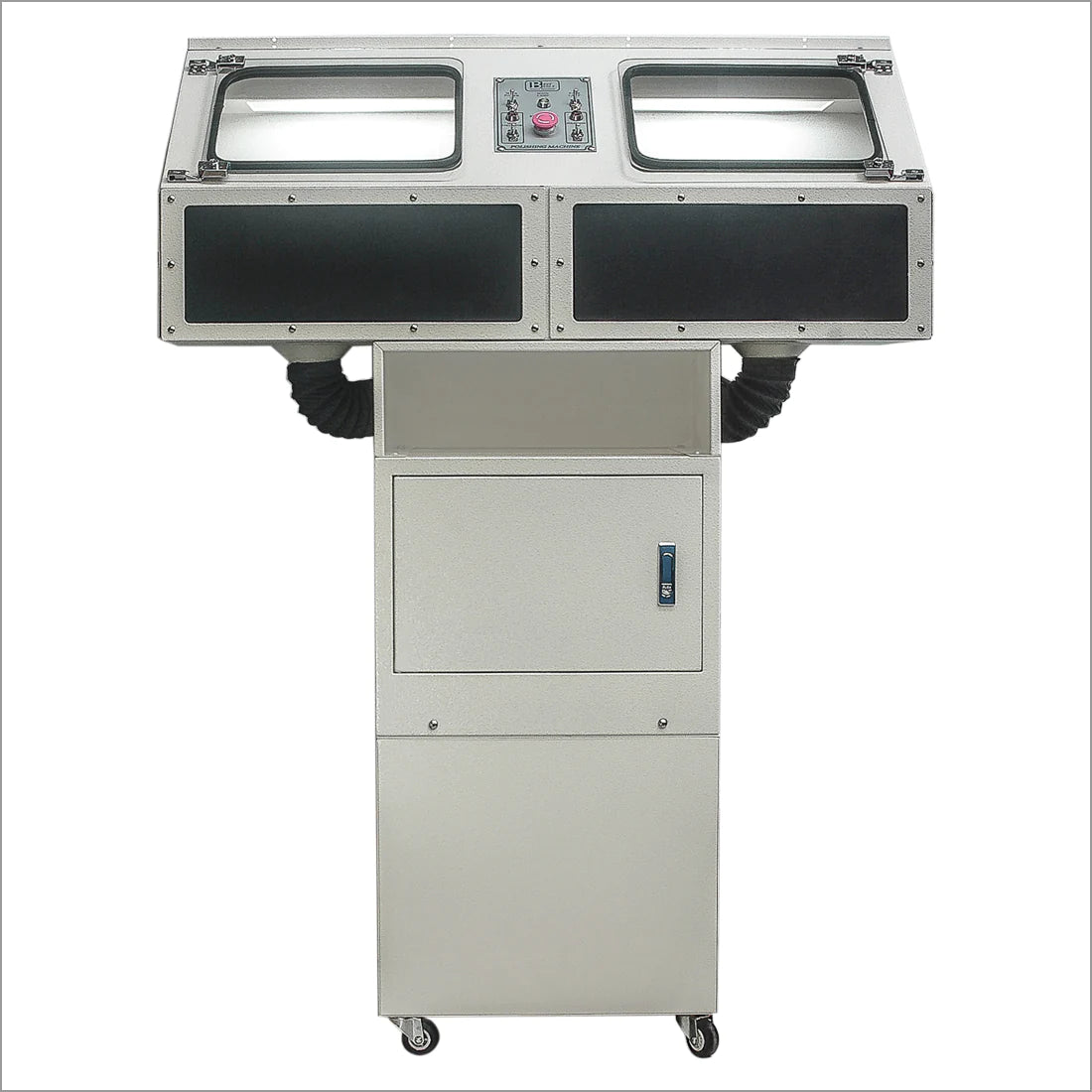

Polishing System - Best Built

Price: $2,750.00

Part # EQ-BESBLT-12001

Only 1 left

Same-day shipping is for approved trade accounts. Apply

Orders 5 lbs and over ship at standard rates.

Weight 150.0 lb 5 lb limit

This item weighs 150.0 lb.

Product details

Description

NEW AND IMPROVED, VACUUM DUST COLLECTOR WITH 40% NOISE

• 3/4 hp fully sealed, heavy duty, permanently lubricated ball bearing polishing motors 3450 rpm.
• Cool and efficient florescent lighting. Lights are enclosed behind a unique tempered glass shield, which protects the bulbs and keeps them clean.

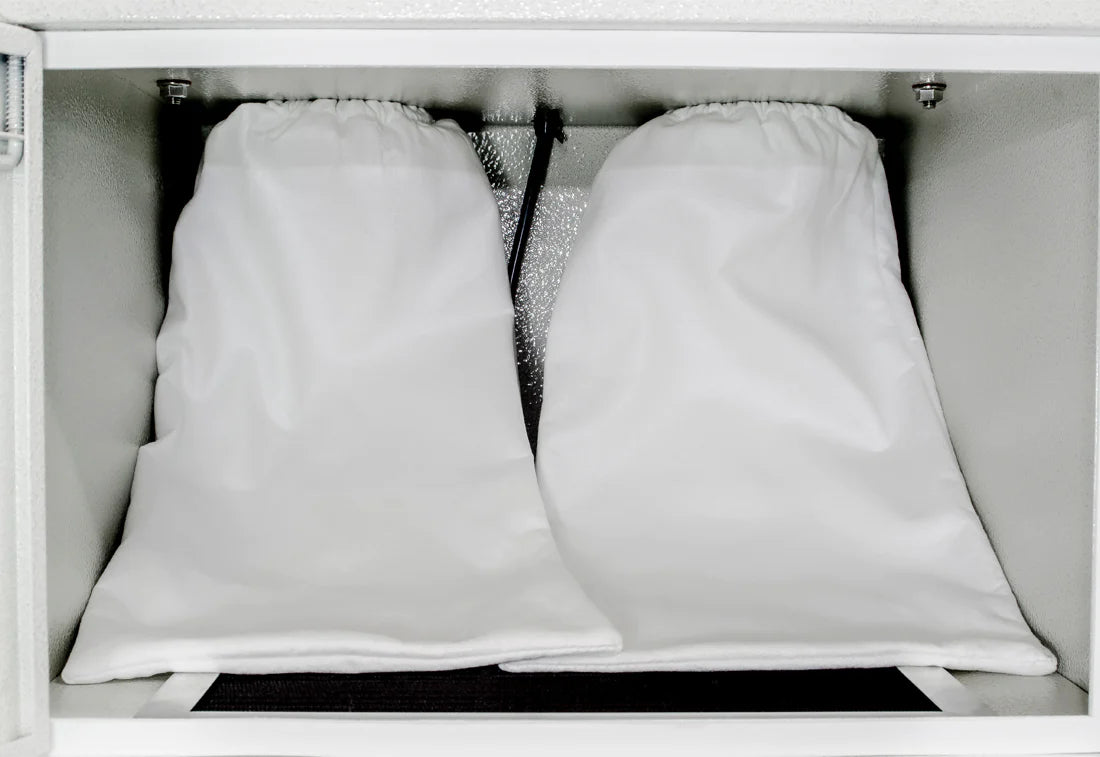

• Unique double filter system combines the technology of a dense, pleated filter with a tightly woven cotton filter bag, ensuring maximum recovery. Pleated filter to optimize dust escaping the unit.  Recommend to be replaced yearly.
• 1/2 hp suction motor creates 550CFM

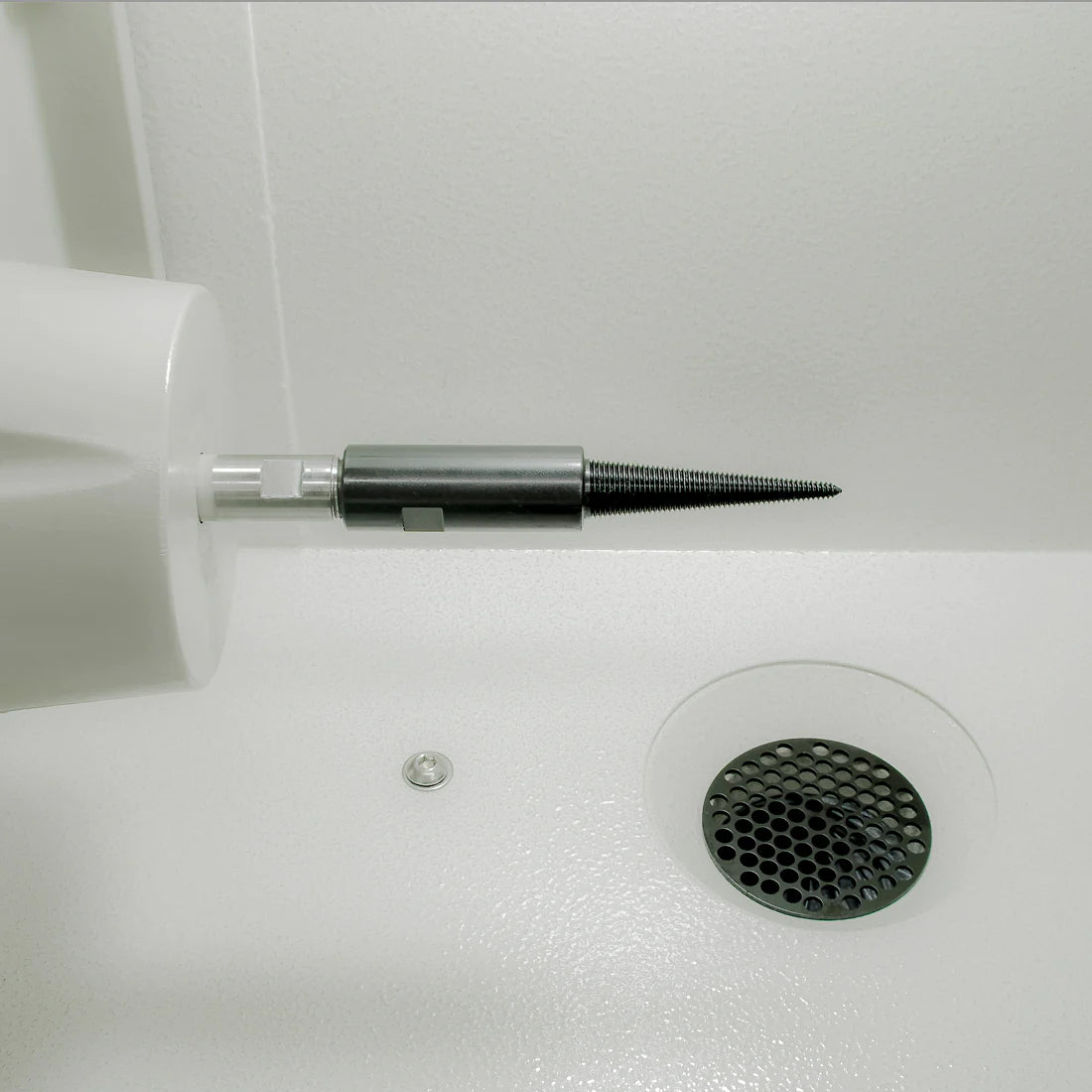

• 1/2 inch straight shafts
• Rust proof spindles

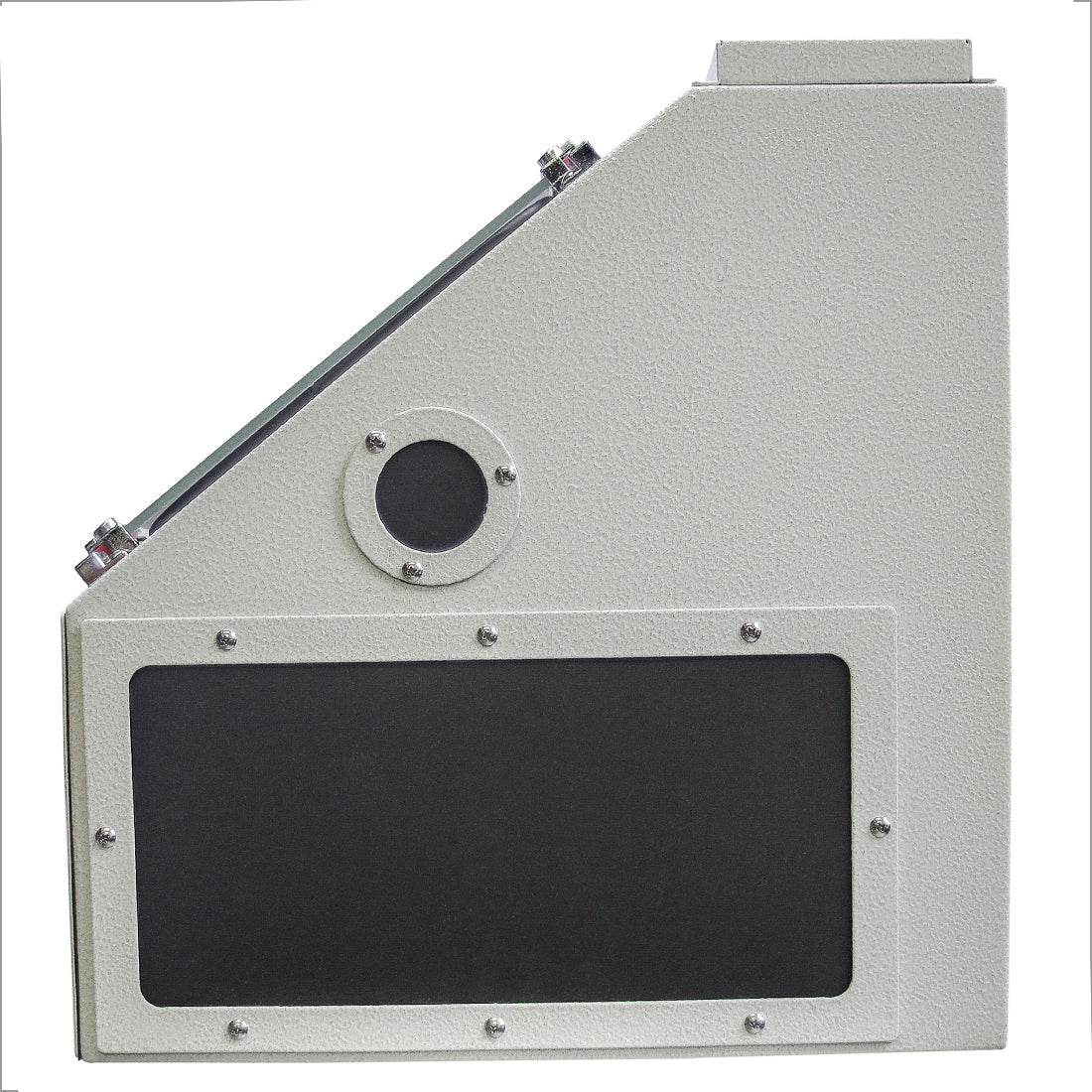

• Heavy duty 12 gauge steel cabinet
• Tempered glass for safety, also eliminates scratching and marring
• Handpiece access opening
• Fabric panels for hand access are custom cut by each customer.
• 110 Volts / 20 amps
• 1 hp suction unit is available
• Unit is on wheels

THIS ITEM NEEDS TO BE SHIPPED VIA FREIGHT

Polishing sequence From file marks to a mirror finish, with a Dialux color chart.

Polishing sequence guide

How to move from file marks to a mirror finish, and which Dialux compound to use on gold, silver, platinum and steel.

Coarse to fine

  1. File Shape the piece and remove deep marks, working from medium to fine cut.
  2. Abrasive papers Work through grits, for example 400, 600, 800 and 1200, until the previous grit's scratches are gone.
  3. Cut (pre-polish) A cutting compound such as tripoli on a felt or firm buff removes the fine sanding lines.
  4. Shine Rouge or a high-gloss compound on a soft, clean buff brings up the final mirror finish.

Use one compound per buff and clean the piece between stages. Compound carried over from the last stage leaves scratches. If scratches still show at the shine stage, go back to cutting.

Dialux compounds by color

Dialux bars are color coded by job. Pre-polish colors cut, high-gloss colors finish. Uses below are the manufacturer's.

Color Stage Use Add
Yellow Pre-polish Pre-polishing softer metals.
$8.00
Orange Pre-polish Pre-polishing harder metals. Use with harder cloth mops.
$8.00
Grey Pre-polish Pre-polishing harder metals. Removes deeper scratches and freshens the surface.
$8.00
Red High gloss High-gloss polishing of precious metals.
$8.00
White High gloss Polishing sterling silver, with good reflective results.
$8.00
Black High gloss Polishing silver. Use with softer mops or buffs.
$8.00
Green High gloss High-gloss polishing of hard alloys such as white gold, platinum and silver.
$8.00
Blue High gloss Multi-purpose polishing compound for all metals.
$8.00

Yellow contains silica, so wear a respirator and use dust collection when polishing with it.

Buffs

Firm buffs (felt, stitched cotton) hold a cutting compound and keep edges and flat surfaces crisp. Soft buffs (loose cotton, flannel, chamois) carry the final high-gloss compound. Mounted buffs reach inside rings and around settings.
