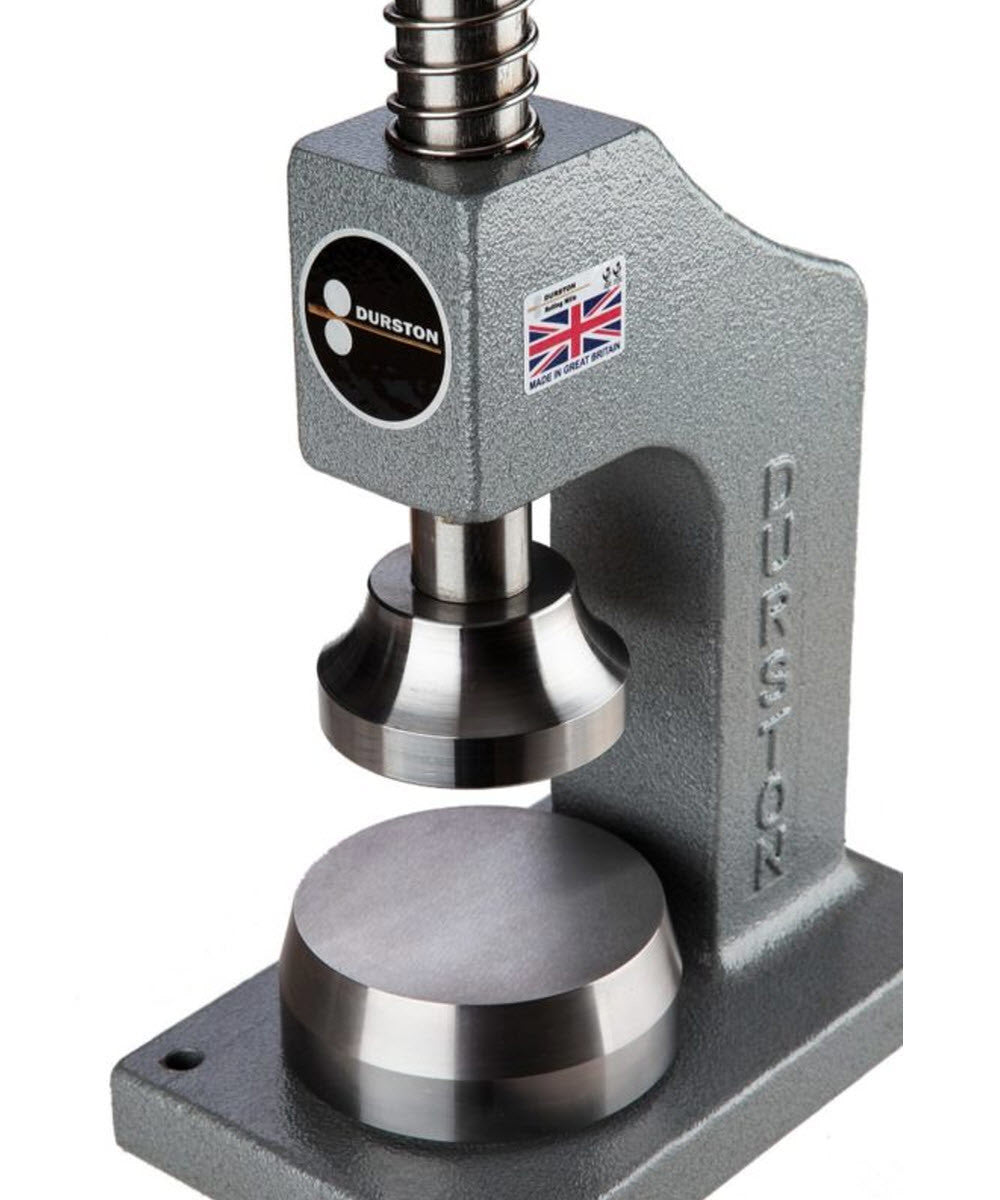

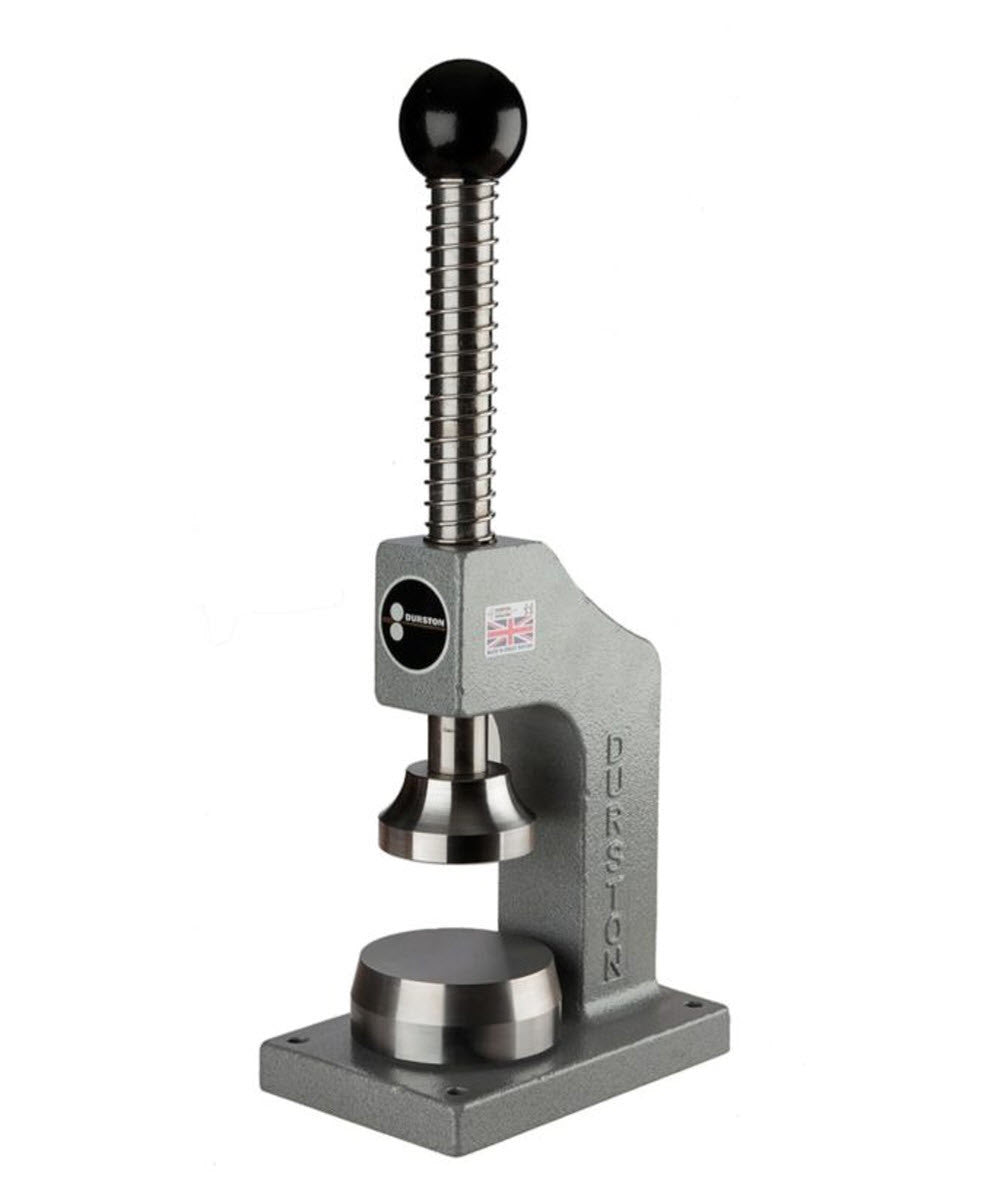

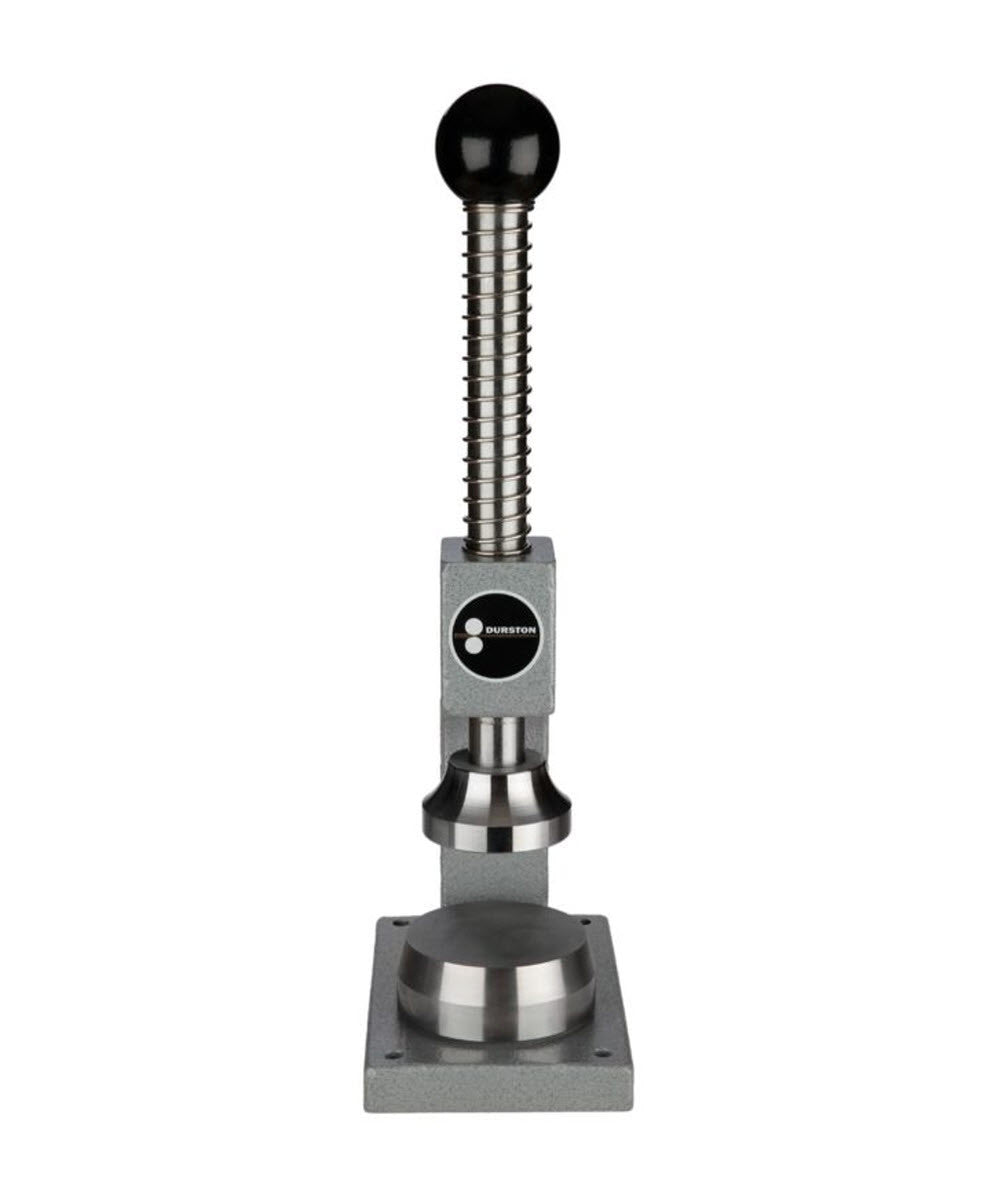

Durston Planishing Hammer

The Durston Planishing Hammer is a heavy-duty metal-forming tool designed to straighten, smooth, and flatten sheet metal during jewelry fabrication and repair. This bench-mounted press hammer combines a planishing block with a spring-loaded striker, allowing jewelers to achieve a smooth, uniform metal surface quickly and efficiently.

Planishing is a finishing technique where controlled hammer pressure is applied repeatedly to smooth and refine metal surfaces. This process removes imperfections left from rolling, forming, or soldering and helps produce a professional finish on jewelry components and sheet metal work.

Durston planishing tools are built with heavy cast-iron construction for stability and durability, and feature hardened steel platens designed to withstand repeated metalworking use.

Key Features

• Spring-loaded planishing press design for fast metal finishing

• Heavy-duty cast iron body for stability

• Hardened steel planishing plates for durability

• Ideal for flattening and smoothing sheet metal

• Suitable for metals including gold, silver, copper, and brass

Applications

• Flattening rolled sheet metal

• Repairing warped or uneven metal surfaces

• Removing hammer marks after forming

• Creating smooth, professional finishes on jewelry components

• Preparing metal for polishing or further fabrication

Product Specifications

• Brand: Durston Tools

• Tool Type: Planishing hammer / press

• Construction: Cast iron body with hardened steel plates

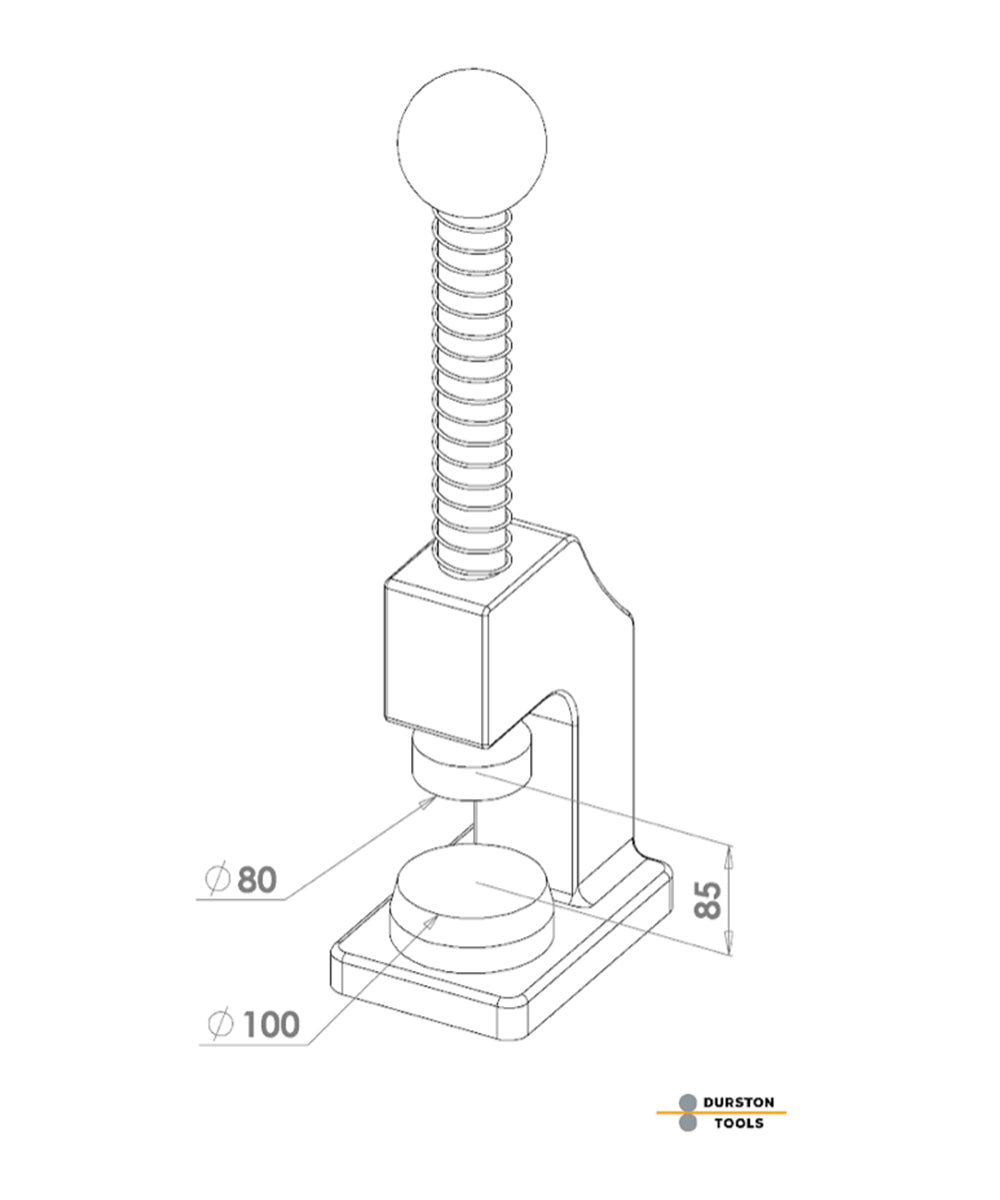

• Top Plate Diameter: approx. 80 mm

• Bottom Plate Diameter: approx. 100 mm

• Overall Height: approx. 540 mm

• Weight: approx. 21–23 kg (46–51 lbs)
