Now Available!

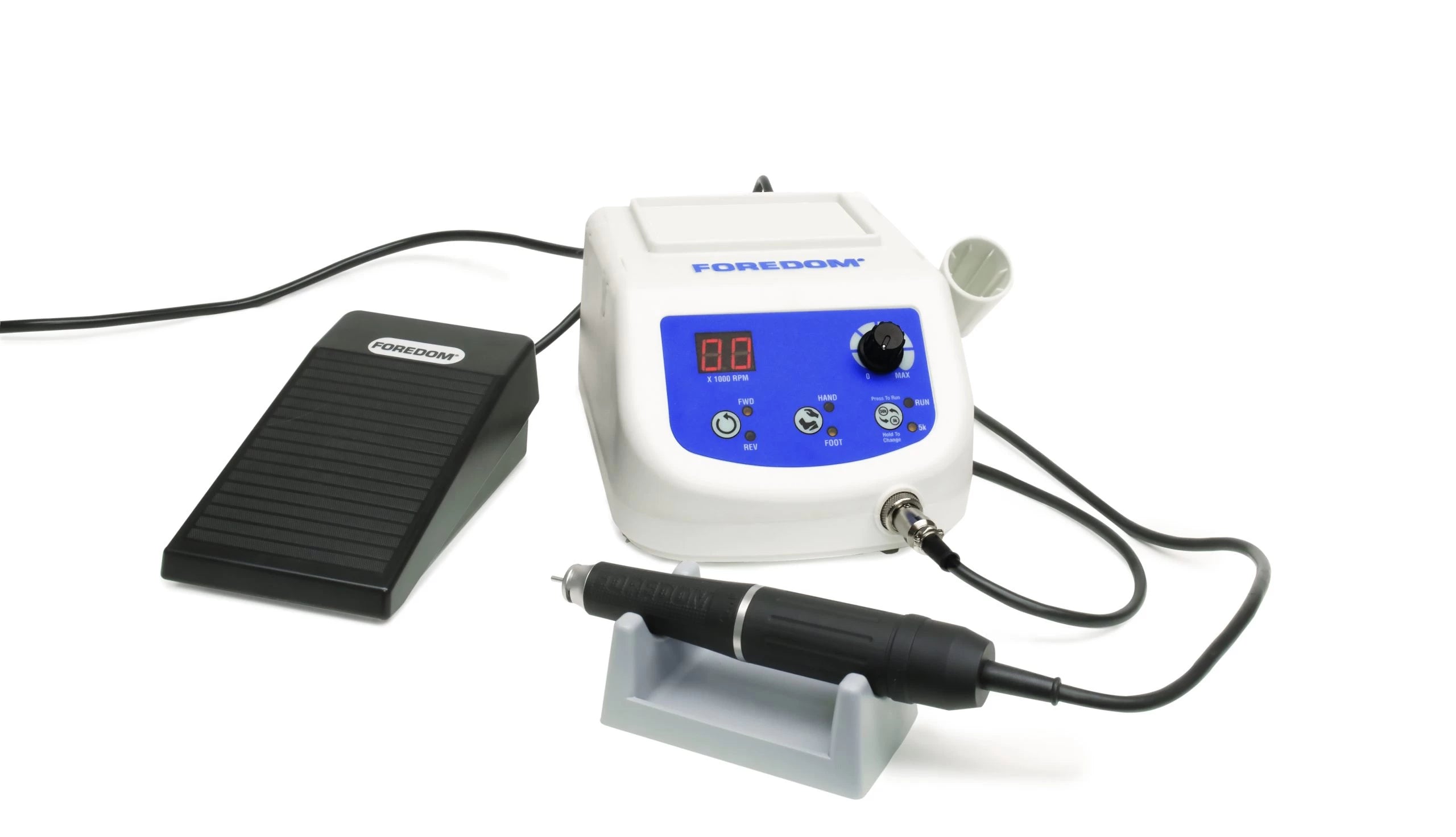

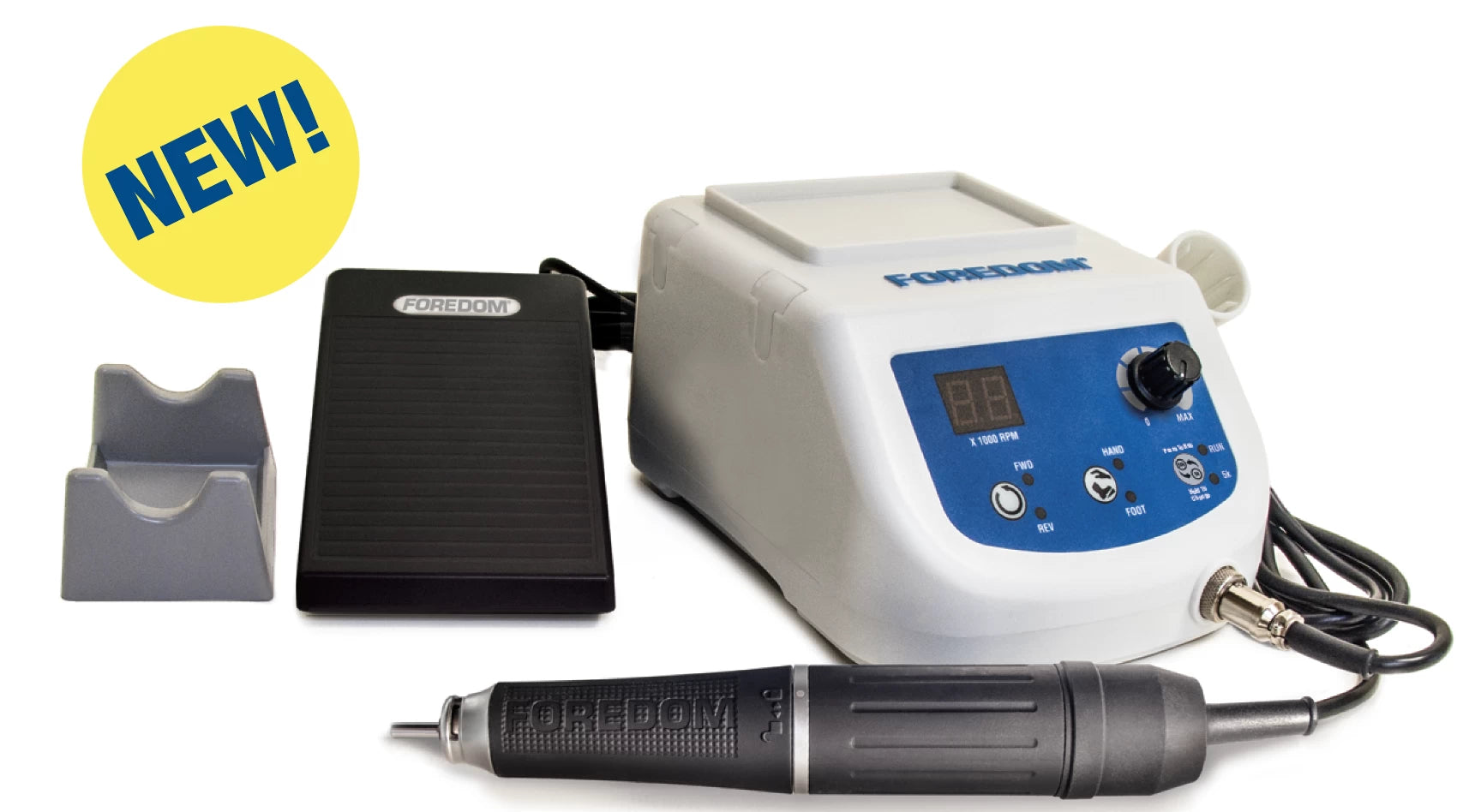

NEW! K.1040 High Speed Rotary Brushless Micromotor
Slow, Steady and Smooth! High Torque Start.
Brushless motor design – eliminating the need to replace carbon brushes
Two speed settings:
Setting  1 – Full speed range up to 50,000 RPM.
Setting 2 – 500 RPM – 5,000 RPM.
  • Maximum Torque – (11.3 oz-in / 8 N-Cm) or 160 Watts Output Power
  • Sealed housing eliminates dust, noise, and vibration
  • 115 or 230 Volt
  • Two Year Warranty
  • UKCA and CE marked, double insulated
Specs: 8.6 lbs. kit shipping weight, shipping dimensions: 12˝ x 10-1/4˝ x 5-1/4˝

Handpiece/Motor
  • Ergonomic, comfortable grip
  • Brushless with long-lasting ball bearings
  • Easy bur changes – twist to release or lock bur
  • Designed for simple collet changes to use 3/32˝ (2.35mm) or 1/8˝ shank burs
Specs: 6-1/2˝ long, 1-1/8˝ diameter at thickest end, 1/2˝ diameter at nosecone, 5´ long handpiece cord, weighs 8.9 oz.

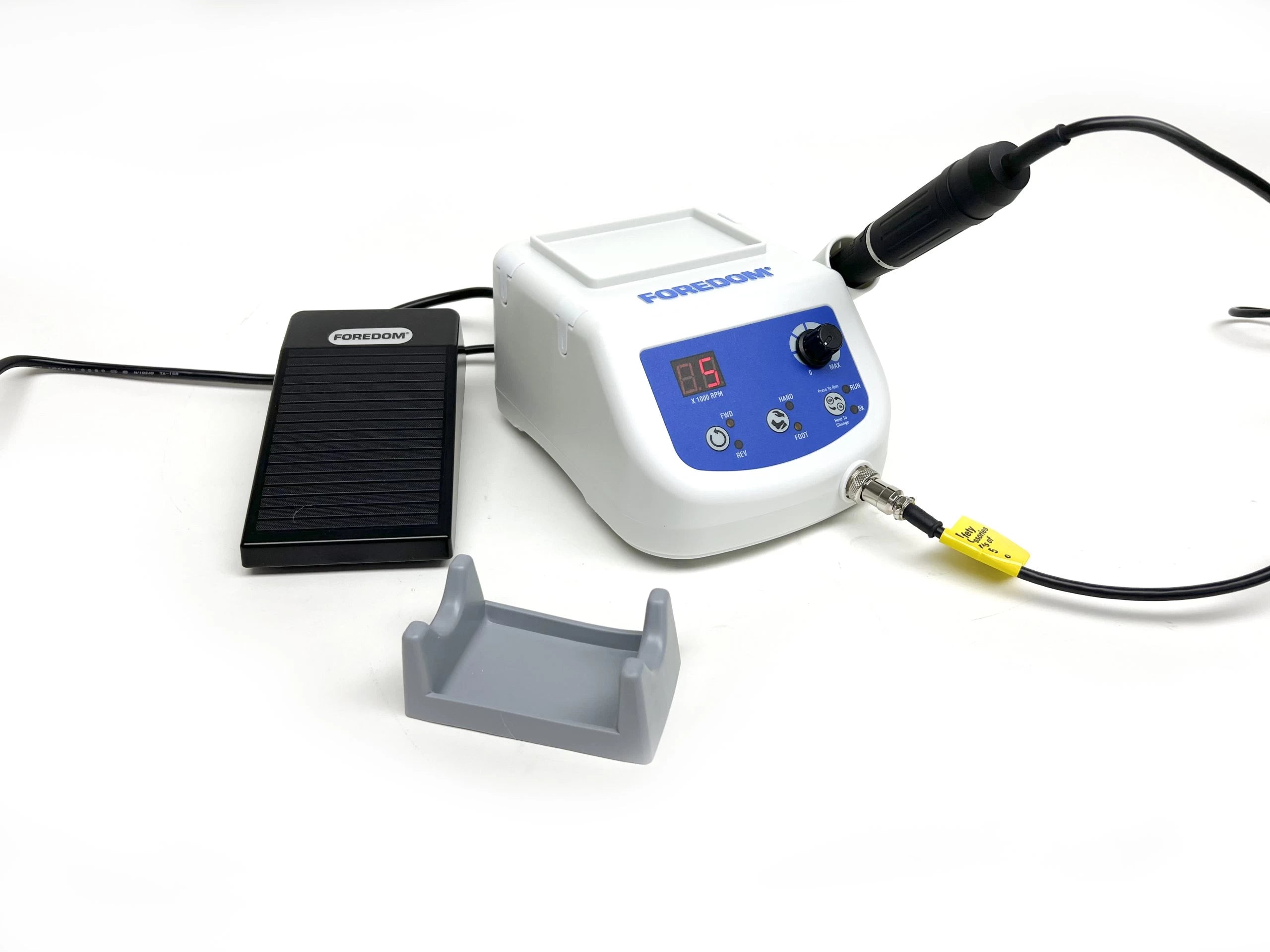

Control Box with Front Panel LED
  • Dial speed control sets precise speed and can set a maximum speed for operation with foot control
  • LED digital speed display
  • Select: Forward or Reverse rotation, Dial or Foot speed control, 115 or 230 Volt
  • Built in overload protection
  • Convenient handpiece holder with four (4) optional locations on control box
  • Tray with lip on top of control box to hold small items
    Specs: 50/60 Hz, 250 Input Watts, 6˝ wide x 8˝ deep x 4-1/4˝ high, 6´ cord, weighs 5.4 lbs.

Variable Speed Foot Control: 3-3/4˝ wide x 6-1/4˝ long x 2-1/2˝ high, weighs 25 oz.
