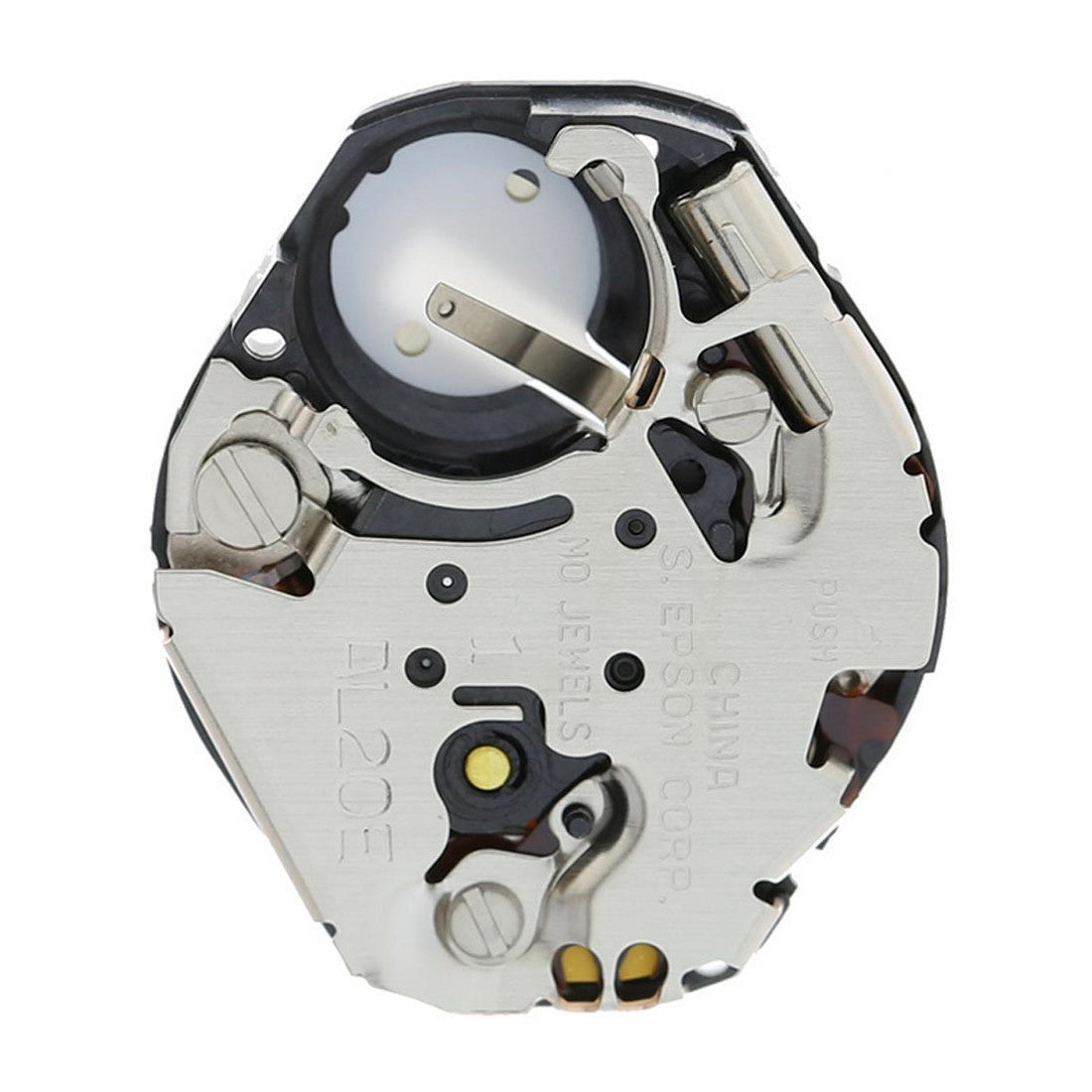

Hattori AL20 Quartz Movement
Price:
$5.95
Product details
Description
Hattori AL20 quartz watch movement is a 2-hand movement (hour / minute). Size: 6 3/4 x 8 ligne, dimensions 15.30 × 18.10 mm, thickness 2.99 mm, overall height 4.20 mm. Hand sizes are 110 / 65 (H / M). 0 jewels, uses a 377 (SR626SW) battery. Stem is part number 354786, tap 10. Origin: Japan.
Includes stem.
Battery, hand and stem specs included so you can order every matching part at once.
Specifications
| Manufacturer | Hattori |
|---|---|
| Caliber | AL20 |
| Movement type | Quartz |
| Size | 6 3/4 x 8 ligne (15.30 × 18.10 mm) |
| Thickness | 2.99 mm |
| Overall height | 4.2 mm |
| Functions | Hours & minutes |
| Battery | 377 |
| Jewels | 0 |
| Hands | 2 |
| Hand sizes (H / M / S) | 110 / 65 |
| Stem | 354786, tap 10 |
| Origin | Japan |
Battery for this movement: 377
Add the matching battery to the same order.
-
377 RENATA $0.51
-
377 SEIKO SEIZAIKEN $0.55
-
377/376 ENE $0.94
Stem for this movement
- Stem number
- 354786
- Crown tap
- 10
HATTORI stem 354786
$5.95
Crowns fit the case, so match the crown to the case tube and the tap size. Shop crowns · Crown and stem guide
