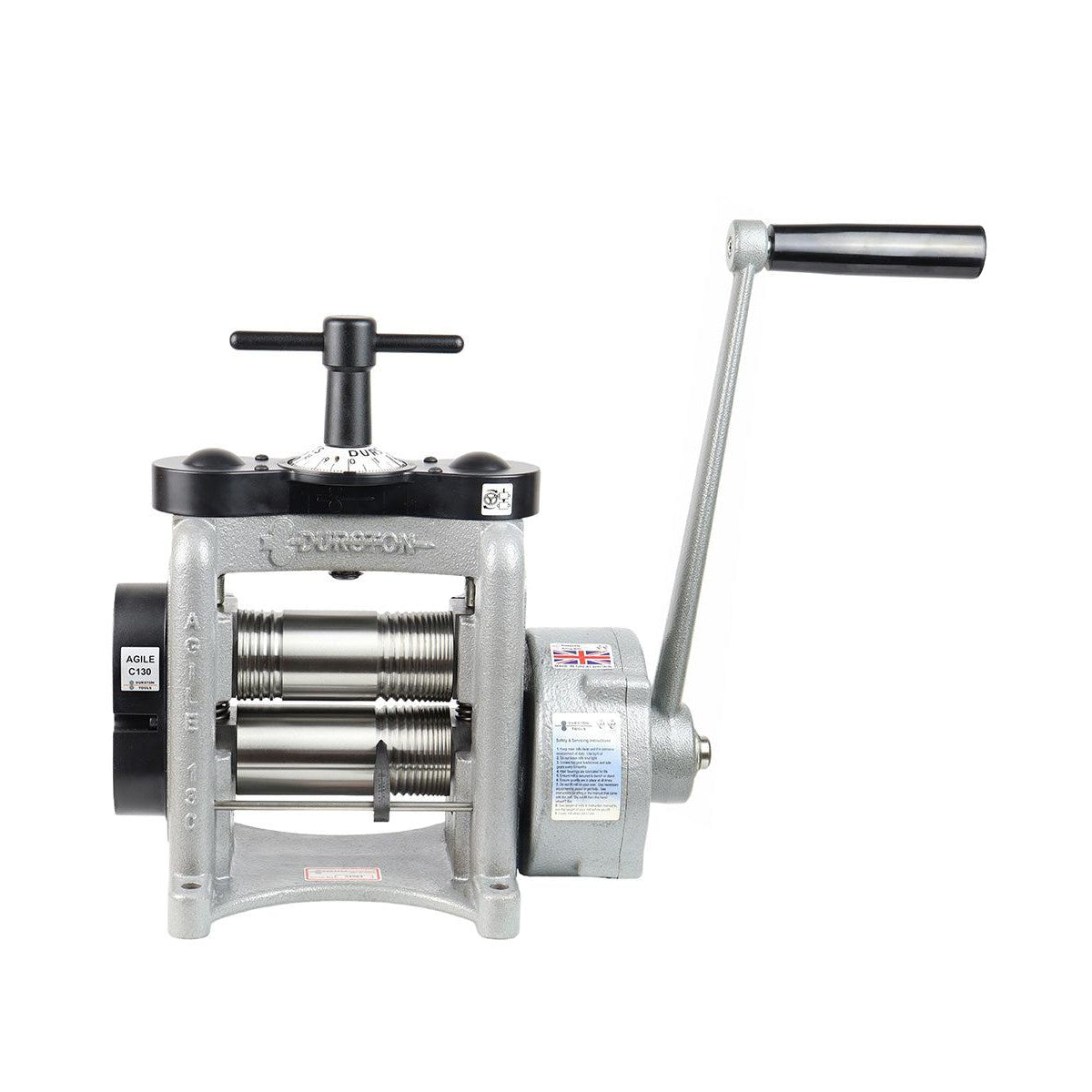

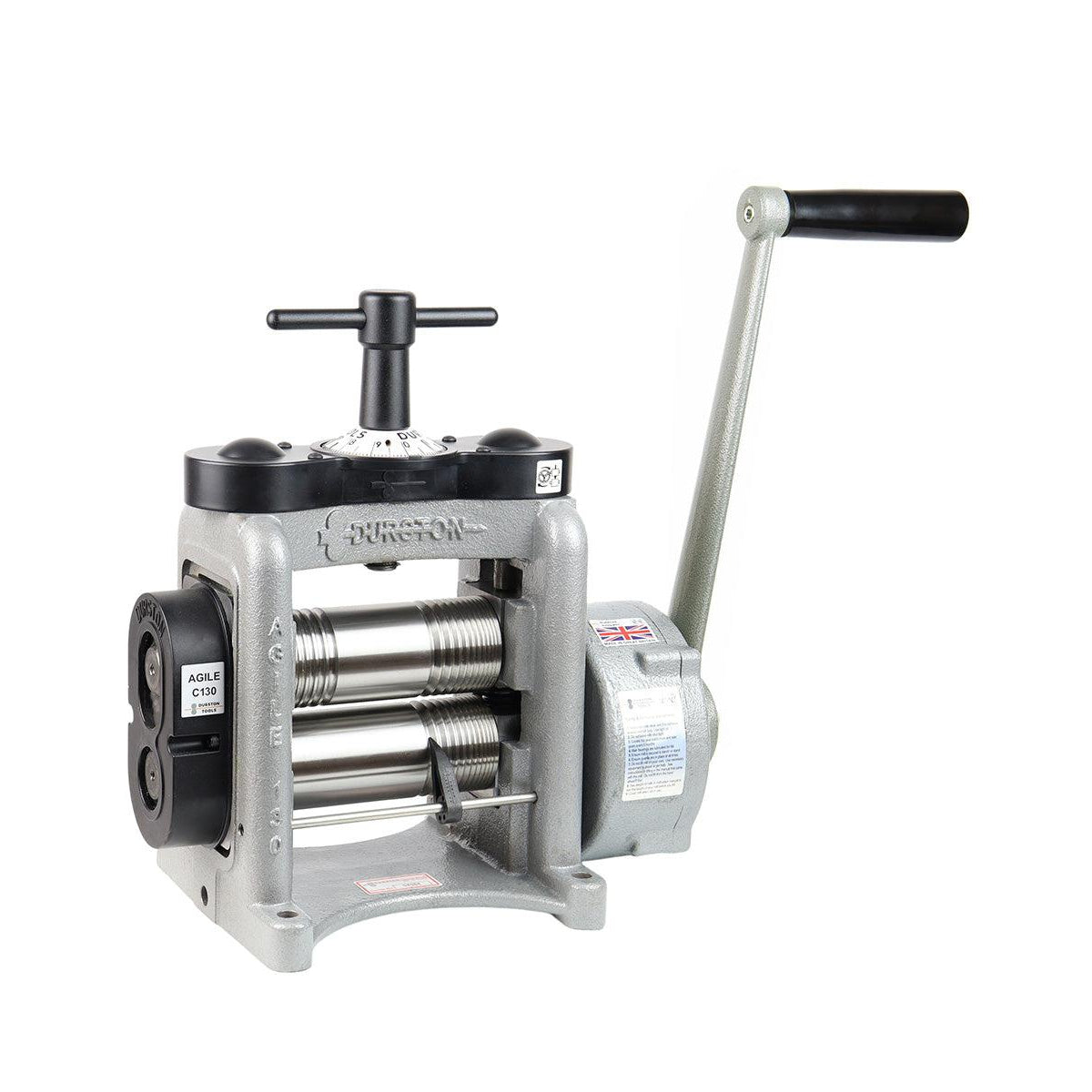

Durston Agile C130 Combination Rolling Mill

The Durston Agile C130 is a professional combination rolling mill designed for jewelers and metalsmiths who need a reliable tool for rolling sheet metal and forming wire. Part of Durston’s Agile series, the C130 offers the same high-quality performance as Durston’s premium mills but with a lighter frame and more compact design, making it ideal for professional workshops and studio environments.

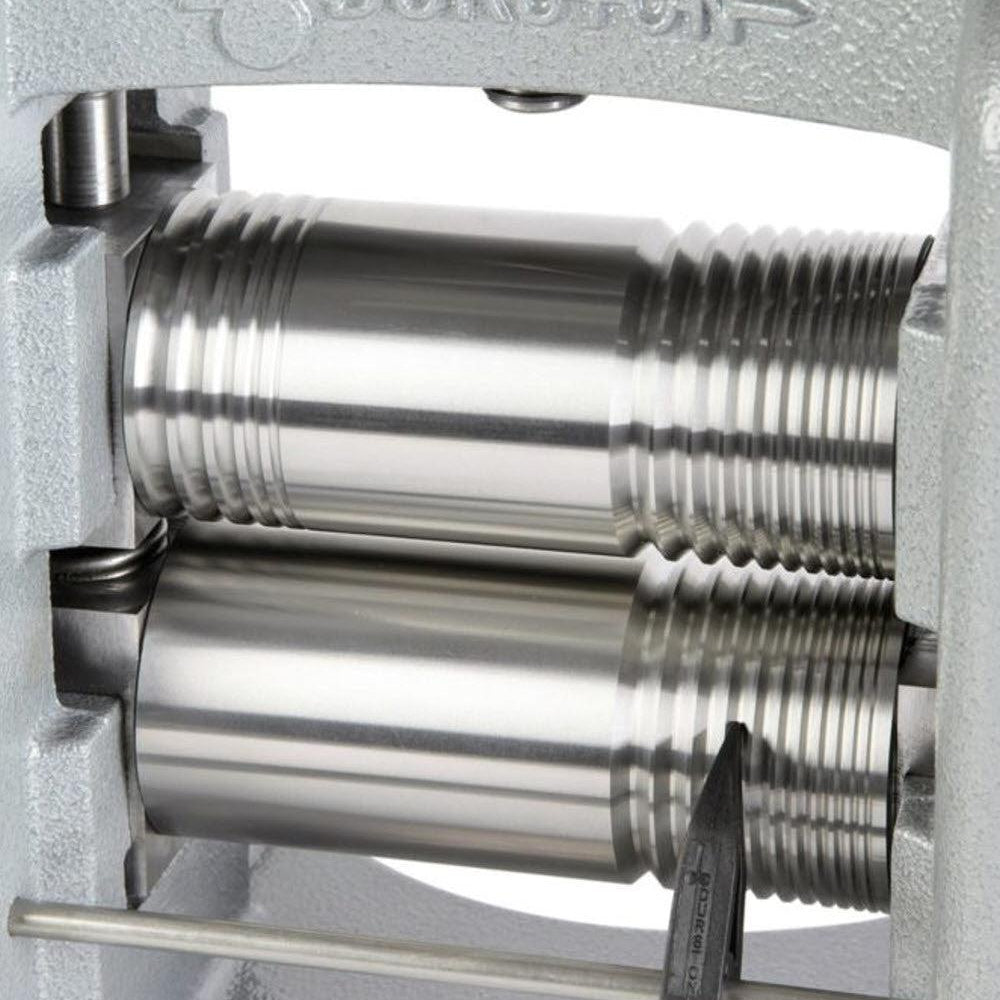

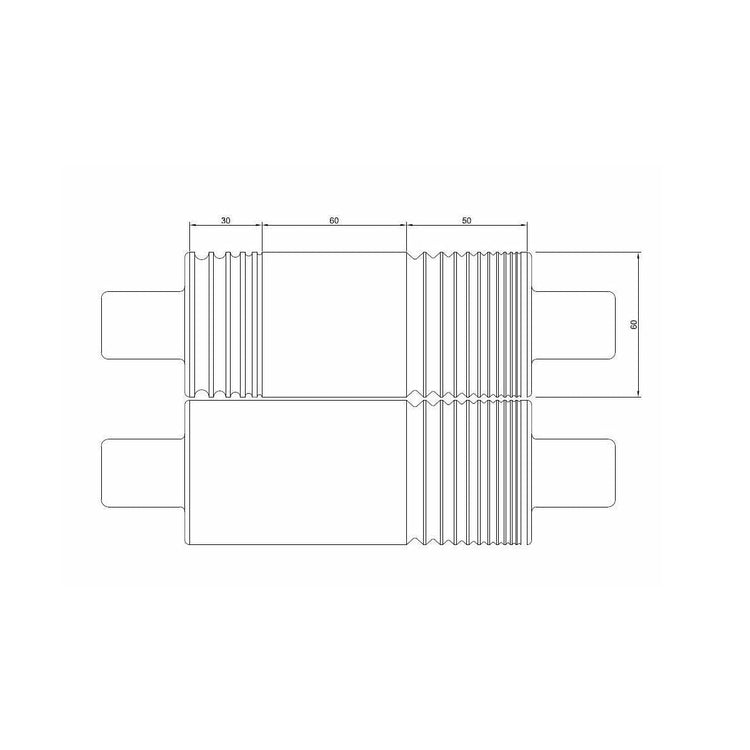

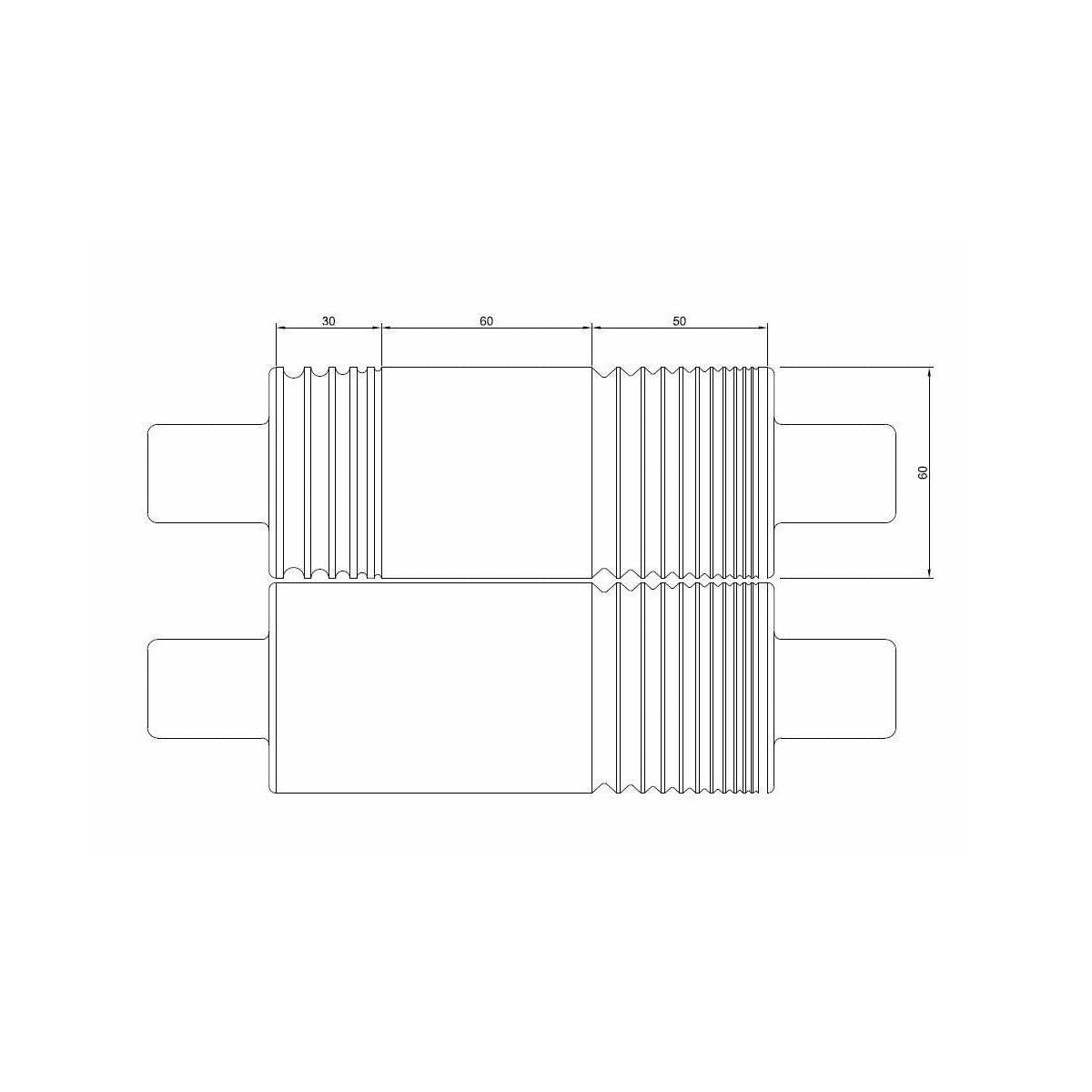

The mill features 130 mm wide rollers, including a 60 mm flat rolling area, 11 square wire grooves, and 5 half-round grooves, allowing jewelers to roll sheet, square wire, and half-round wire with a single machine.

A 5:1 reduction gearbox significantly reduces the effort required to roll metal, providing smoother operation and better control when reducing metal thickness or shaping wire.

Durston rolling mills are known for their precision-ground, induction-hardened steel rolls and robust construction, ensuring consistent results and long-term durability in demanding jewelry workshops.

Key Features

• Combination rolling mill for sheet and wire

• 130 mm roller width with 60 mm flat rolling area

• 11 square wire grooves for forming wire

• 5 half-round grooves (2–6 mm)

• 5:1 reduction gearbox for easier rolling

• Induction-hardened steel rolls (~64 HRC) for durability

• Self-lubricating bearings for smooth operation

Applications

• Rolling sheet metal thinner

• Forming square and half-round wire

• Jewelry fabrication and metalworking

• Texture rolling and pattern rolling

• Preparing metal for rings, bangles, and wire components

Product Specifications

• Brand: Durston Tools

• Model: Agile C130

• Roller Length: 130 mm

• Roller Diameter: 60 mm

• Flat Rolling Area: 60 mm

• Square Wire Grooves: 11 (approx. 1–8 mm)

• Half-Round Grooves: 5 (2–6 mm)

• Maximum Sheet Thickness: 6 mm

• Maximum Wire Capacity: 8 mm

• Gear Ratio: 5:1 reduction gearbox

• Weight: approx. 39.7 kg (87 lbs)
