Miyota
Miyota 9U13 Quartz Movement, Date at 6
Product details
Description

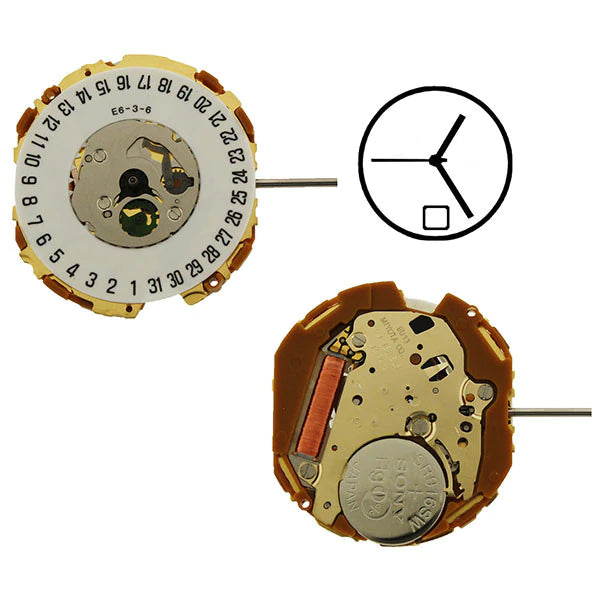

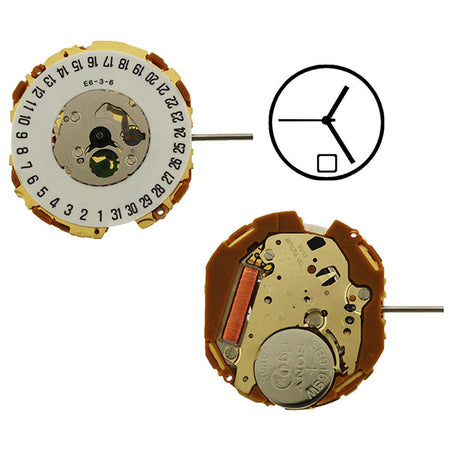

Miyota 9U13 quartz watch movement is a 3-hand movement (hour / minute / second, date at 6:00). Size: 10 1/2 ligne, dimensions 21.50 × 23.70 mm, thickness 2.33 mm, overall height 3.70 mm. Hand sizes are 120 / 70 / 17 (H / M / S). 0 jewels, uses a 373 (SR916SW) battery. Stem is part number 065-495, tap 10. Origin: Japan.
Battery, hand and stem specs included so you can order every matching part at once.
Specifications
| Manufacturer | Miyota |
|---|---|
| Caliber | 9U13 |
| Movement type | Quartz |
| Size | 10 1/2 ligne (21.50 × 23.70 mm) |
| Thickness | 2.33 mm |
| Overall height | 3.7 mm |
| Functions | Hours & minutes; Sweep seconds; Date |
| Battery | 373 |
| Date position | Date at 6:00 |
| Jewels | 0 |
| Hands | 3 |
| Hand sizes (H / M / S) | 120 / 70 / 17 |
| Stem | 065-495, tap 10 |
| Origin | Japan |
Battery for this movement: 373
Add the matching battery to the same order.
-
373 RENATA $1.40
-
373 SEIKO SEIZAIKEN $1.39
-
373 MURATA $1.48
Stem for this movement
- Stem number
- 065-495
- Crown tap
- 10
Crowns fit the case, so match the crown to the case tube and the tap size. Shop crowns · Crown and stem guide
Movement cross reference Replacement movements by brand and caliber, with specs and battery.
