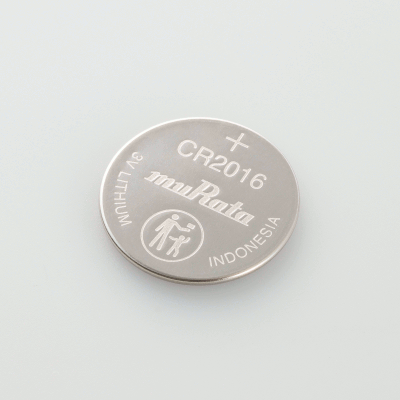

2016 MURATA

2016 MURATA

Price: $0.82

Part # BATT-MU-2016

In stock

Same-day shipping is for approved trade accounts. Apply

Free shipping on orders over $200 and under 5 lbs. Add $199.18 more after this item.

$0 Free at $200

Product details

Description

Specifications

Battery type Coin Manganese Dioxide Lithium Batteries
Nominal Voltage 3.0V
Nominal Capacity 90mAh
Standard Discharge Current 0.1mA
Operating Temperature Range -30℃ to 70℃
Diameter (inch) 0.787inch
Diameter (mm) 20mm
Height (inch) 0.063inch
Height (mm) 1.6mm
IEC (JIS) CR2016
Mass (oz) 0.0635oz
Mass (g) 1.8g

Features

• Lightweight, High Voltage and High Energy Density
The battery voltage is 3V, almost double that of normal alkaline or manganese batteries. This means that the number of batteries required for equipment can be halved for maximum space saving and weight reduction.

• Excellent Discharge Characteristics
Voltage characteristics remain stable even for a long period of discharge, greatly improving the reliability of equipment that uses the battery. Such equipment is also maintenance-free (battery replacement is seldom required).

• Excellent Leakage Resistance
The newly developed battery construction and electrolyte ensure maximum leakage resistance over a long span of time.

• Excellent Long-Term Reliability
Carefully selected active materials are used for the active material as well as for the electrolyte. These materials are sealed by Murata's innovative technology to minimize battery self-discharge. The annual self-discharge rate at room temperature and normal humidity is less than 1% of the nominal capacity.

• UL Approved Parts
Murata's Coin Manganese Dioxide Lithium Batteries are approved by UL. (UL1642 File No. MH12566)
