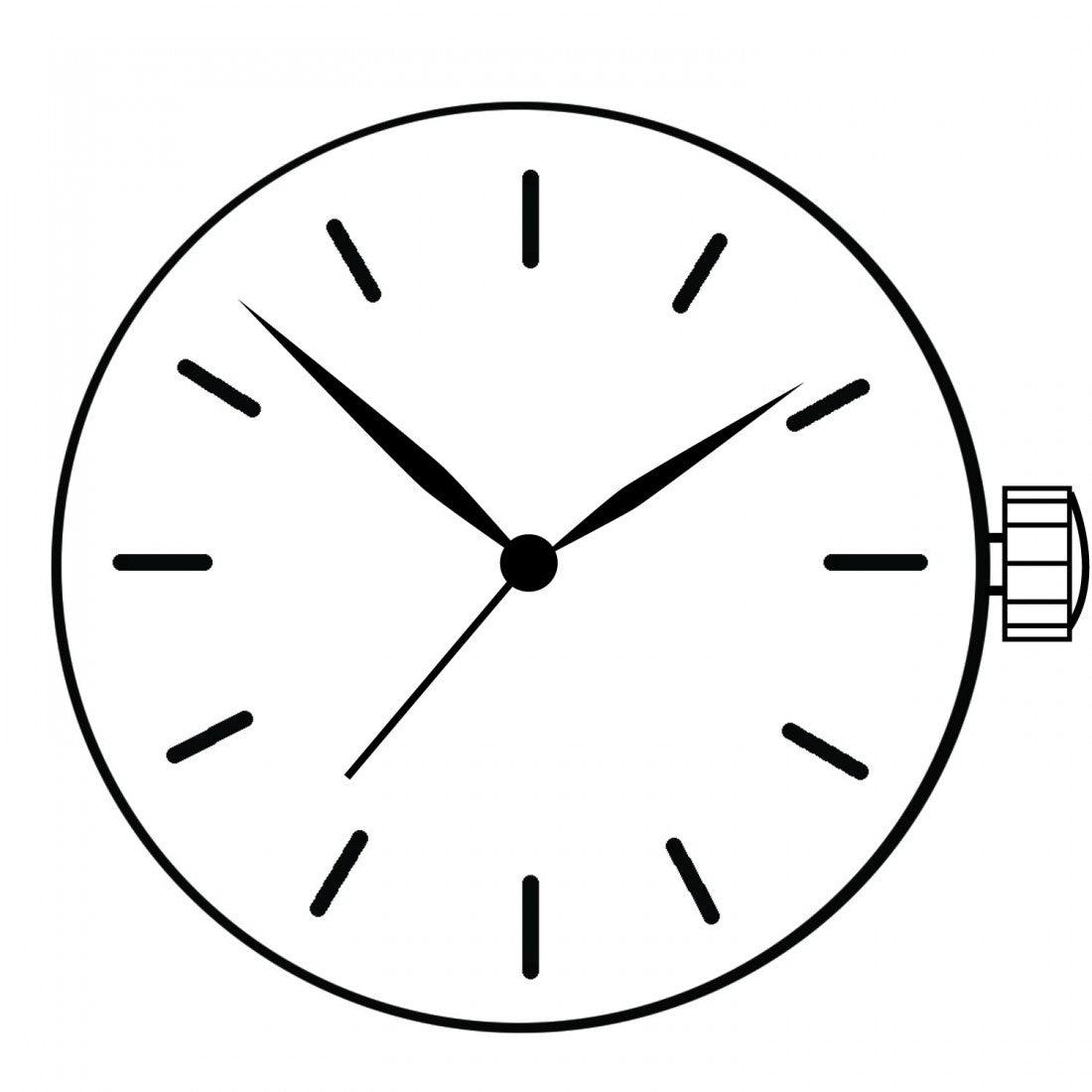

5Y36 Miyota Quartz Watch Movement is a 3 hand movement (hour / minute / sweep seconds). This ladies movement is a 5 1/2 x 6 3/4 ligne movement, dimensions are 13.00 mm x 15.75 mm with a thickness of 2.60 mm, overall height 4.54 mm. Hand dimensions are 100/65/17 (h/m/s). 0 jewel movement, uses 379 battery. Stem is part number 065-403 (tap 0.70 mm/ tap 12). This movement is identical to Miyota 5Y30, only difference is a higher hour wheel, cannon pinion and sweep pinion. The cannon pinion height over the main-plate is 2.08 mm.
